The ignition coil packs are a critical component of your car's engine, responsible for transforming the battery's voltage into the spark needed to ignite the fuel. When it starts to malfunction, the symptoms can be as subtle as a minor misfire or as severe as a complete engine failure. Understanding how to diagnose and test your ignition coil can save you time and money, preventing unnecessary trips to the mechanic. In this guide, we will walk you through the step-by-step process of identifying ignition coil issues, using both traditional methods and modern diagnostic tools. Get ready to roll up your sleeves and ensure your vehicle is running smoothly with our comprehensive tips and techniques.
Understanding the Ignition Coil
The ignition coil pack is integral to your vehicle's functionality, transforming low voltage into the high voltage needed for the spark plugs to ignite fuel. Let's delve deeper into its role, types, and the common symptoms of failure.
Role in Vehicle Operation
The ignition coil is a small but crucial part of the car's ignition system. It works like a transformer with secondary windings , converting the 12 volts from the car battery into thousands of volts. This high voltage is necessary for creating a spark in the spark plug, igniting the air-fuel mixture in the engine cylinders. Without a properly functioning ignition coil, the engine may struggle to start or run inefficiently.
When the failing ignition coil fails, you might notice the engine misfiring or experiencing reduced power. These issues can lead to decreased fuel efficiency and increased emissions. Recognising the coil's role helps diagnose problems early and maintain vehicle performance.
Understanding how to check car coil functions can save you from costly repairs. In some cases, a simple check can prevent further damage to other engine components. Always consider the ignition coil when facing engine performance issues.
Types of Ignition Coils
There are several types of ignition coils used in vehicles, each suited for specific engine configurations and technology levels. The most common types include canister, distributorless, spark plug wire and coil-on-plug (COP) systems.
Canister coils are traditional and often found in older vehicles. They require a distributor to direct the spark to the correct cylinder. Distributorless ignition systems (DIS) use multiple coils to fire pairs of spark plugs simultaneously. This system is more efficient and reliable than the canister type, and it can be tested with a digital multimeter .
Coil-on-plug systems are the most advanced, with each coil sitting directly on top of the spark plug. This design eliminates the need for high-voltage wires, reducing energy loss. COP systems are commonly found in modern vehicles due to their efficiency and reliability.
Knowing the type of ignition coil in your vehicle is crucial for accurate diagnosis and replacement. Each type has unique characteristics that affect performance and maintenance.
Common Symptoms of Failure
Ignition coil failure can manifest through various symptoms, which, if left unchecked, can lead to more severe engine issues. Common signs include engine misfires, rough idling, and poor fuel economy.
Engine misfires occur when the spark plug doesn't receive enough voltage to ignite the fuel mixture, causing hesitation or stalling. Rough idling is another symptom, where the engine feels shaky or uneven when running at low speeds.
Poor fuel economy can also indicate ignition coil problems. When the coil fails, the engine might burn more fuel to maintain power, leading to increased consumption.
Addressing these symptoms promptly can prevent more extensive damage. Regular maintenance and inspection, including checking the primary resistance, can help detect and resolve coil-related issues before they escalate.
Tools and Equipment Needed
To effectively test an ignition coil, diagnosing your car's ignition coil issues requires specific tools and equipment. This section outlines essential diagnostic tools, safety precautions, and optional tools for advanced testing to ensure a thorough examination.
Essential Diagnostic Tools
To effectively test your ignition coil, you'll need a few essential diagnostic tools. A multimeter is indispensable for measuring the coil's electrical resistance and voltage. It helps determine if the coil is functioning within the manufacturer's specifications.
A spark tester is another crucial tool. It helps verify whether the coil is producing a blue spark strong enough to ignite the engine's air-fuel mixture. This tool is simple to use and provides immediate results.
Finally, have a basic socket set on hand. It allows you to easily access and remove the ignition coil from the engine for more detailed testing. These tools form the foundation of any ignition coil diagnostic kit.
Safety Precautions and Gear
Safety is paramount when working on your vehicle's ignition coil. Always wear protective gloves and eyewear to shield yourself from accidental electric shocks and debris. These safety measures are essential for any automotive repair task.
Ensure that the car is turned off and the keys are removed from the ignition before starting any diagnostics. This precaution prevents accidental engine starts and reduces the risk of injury.
Work in a well-ventilated area to avoid inhaling any harmful fumes. Adequate ventilation also helps dissipate any fuel vapours that might be present, as well as the magnetic field around the ignition system reducing the risk of fire.
Optional Tools for Advanced Testing
For those looking to perform more advanced ignition coil testing, several optional tools can enhance your diagnostic efforts. An oscilloscope allows you to view the coil's voltage waveform, providing insights into its performance.

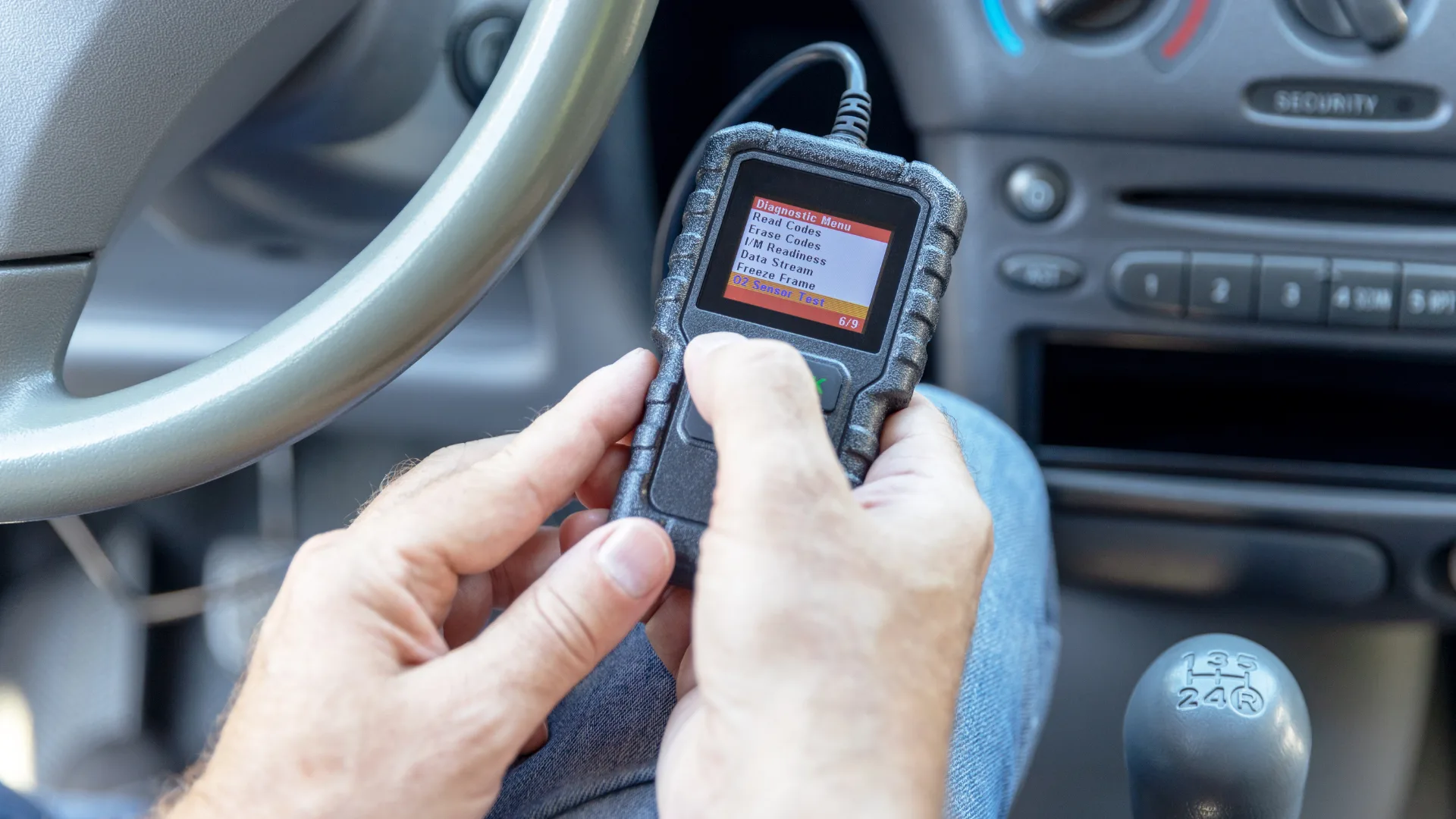

A scan tool can be used to read error codes from the car's onboard diagnostics system. This tool helps identify specific problems related to the ignition coil, making troubleshooting more efficient.
Additionally, a coil tester can be used to simulate the coil's operating conditions, providing a more comprehensive evaluation. These advanced tools offer a deeper understanding of your ignition coil's health.
Why should I choose Fixter?
Step-by-Step Testing Process
Testing your ignition coil involves several steps that ensure a comprehensive evaluation. Follow these visual inspection techniques, multimeter testing procedures, and spark test methods for accurate diagnostics.
Visual Inspection Techniques
Start by visually inspecting the ignition coil and its surroundings. Look for cracks, corrosion, or signs of overheating on the coil's casing, which can indicate damage or wear.
Check the coil's connections and wiring for any signs of fraying or corrosion. These issues can lead to poor electrical conductivity, affecting the coil's performance.
Inspect the spark plugs for wear or damage. Faulty spark plugs can mimic ignition coil failure symptoms, so it's essential to rule them out before testing the coil. This initial inspection can save time and effort in diagnosing ignition coil issues.
Multimeter Testing Procedures
Testing the ignition coil with a multimeter requires a systematic approach. Follow these steps to measure the coil's resistance and voltage accurately:
Set the multimeter to measure resistance (ohms).
Disconnect the ignition coil from the vehicle's electrical system.
Attach the multimeter probes to the coil's primary and secondary terminals.
Compare the readings to the manufacturer's specifications.
Next, test the coil's voltage output:
Reconnect the coil to the car's electrical system.
Set the multimeter to measure voltage.
Start the engine and measure the voltage at the coil's terminals.
Ensure the voltage is within the specified range.
These tests will help determine the ignition coil's health.
Spark Test Methods
Conducting a spark test helps verify the ignition coil's ability to produce a spark strong enough to ignite the engine's air-fuel mixture. Here's how to perform a spark test:
Connect a spark tester to the ignition coil.
Start the engine and observe the spark tester.
Look for a bright, consistent spark.
A weak or inconsistent spark may indicate a faulty ignition coil or related component. Addressing this issue promptly can prevent further engine problems.
Troubleshooting and Solutions
Once you've tested your ignition coil, it's time to interpret the results and find solutions. This section covers interpreting test results, common issues and fixes, and when to seek professional help.
Interpreting Test Results
After completing the ignition coil tests, interpreting the results is crucial for determining the next steps. If the multimeter readings fall outside the manufacturer's specifications, it may indicate a faulty coil.
A weak or absent spark during the spark test suggests that the coil isn't delivering sufficient voltage. This issue could stem from a failing coil or related wiring problems.
Consider other factors, such as the vehicle's age and mileage, when interpreting the results. Older cars may naturally have more wear and tear, affecting coil performance.
Common Issues and Fixes
Several common issues can lead to ignition coil failure, each with its respective solutions. Cracked casings and worn-out connections are frequent problems that can be addressed by replacing the damaged parts.
If the coil's resistance readings are too high or low, it may be due for replacement. Ensuring the coil meets the manufacturer's specifications is crucial for optimal performance.
In some cases, cleaning the coil's connections and terminals can resolve performance issues. Remove any corrosion or debris to restore proper electrical conductivity.
When to Seek Professional Help
Sometimes, primary winding issues in the ignition coil require professional intervention for a thorough diagnosis and repair. If the test results are inconclusive or the symptoms persist despite your efforts, consulting a mechanic is advisable.
Complex problems, such as internal coil damage or engine control module issues, may require specialised equipment and expertise. A professional can accurately diagnose and repair these issues.
Seeking help sooner rather than later can prevent further damage and ensure your vehicle operates smoothly. Trusting a professional when necessary is a wise decision.
Maintenance and Prevention Tips
Maintaining your ignition coil can prolong its lifespan and improve vehicle performance. Follow these maintenance tips for regular inspections, best practices for longevity, and knowing when to replace the coil.
Regular Inspection Routines
Regularly inspecting your ignition coil can help catch potential issues before they escalate. Schedule inspections every 10,000 miles or annually, whichever comes first, as part of your routine maintenance.
Check for signs of wear, such as cracks or corrosion, and address any issues immediately. Inspect the coil's wiring and connections to ensure they are secure and free of damage.
Including the ignition coil in your regular maintenance routine can prevent unexpected breakdowns and keep your vehicle running efficiently.
Best Practices for Longevity
To maximise the ignition coil's lifespan, follow these best practices:
Ensure proper engine tuning: A well-tuned engine reduces stress on the ignition coil.
Use quality parts and fluids: High-quality components can improve performance and longevity.
Keep the engine clean: Regularly clean the engine bay to prevent debris from affecting the coil.
These practices help maintain the coil's health and enhance vehicle efficiency.
Knowing When to Replace
Recognising when to replace the ignition coil, especially regarding the primary and secondary windings, is crucial for maintaining vehicle performance. If the coil consistently fails tests or exhibits persistent symptoms, it may be time for a replacement.
Consult your vehicle's manual for recommended replacement intervals, typically around 100,000 miles. Replacing the coil proactively can save you from costly repairs and ensure the engine runs smoothly.
Staying informed about your ignition coil's condition and taking timely action can ensure a reliable and efficient driving experience.
